XCMG XR - 210I
Hydraulic Rig, with capability of drilling from 600mm to 1800mm in dia. Depth- 44 Mtr.
| Name |
Unit |
Parameter |
| Max Drilling Dia |
mm |
1800 |
| Max Drill Depth |
m |
65 |
| Max Output Torque |
KN.m |
210 |
| Rotary Speed Range |
R/min |
5 to 30 |
| Max Pulling Force |
KN.m |
216 |
| Max Line Speed |
m/min |
60 |
| Diameter of Wire |
mm |
28 |
| Rated Enging Power |
KW |
194 |
| Litre / Hour |
Diesel / Hour |
13 to 18 |
| Displacement |
Litre |
6.7 |
| Operation Weight |
Ton |
61 / 63 |
| Overall Height Working Condtion |
m |
20.48 x 8.35 x 4.2 |
| Transport with Kelly Bar |
Y/N |
Yes |
| Transport Height |
mm |
3452 |

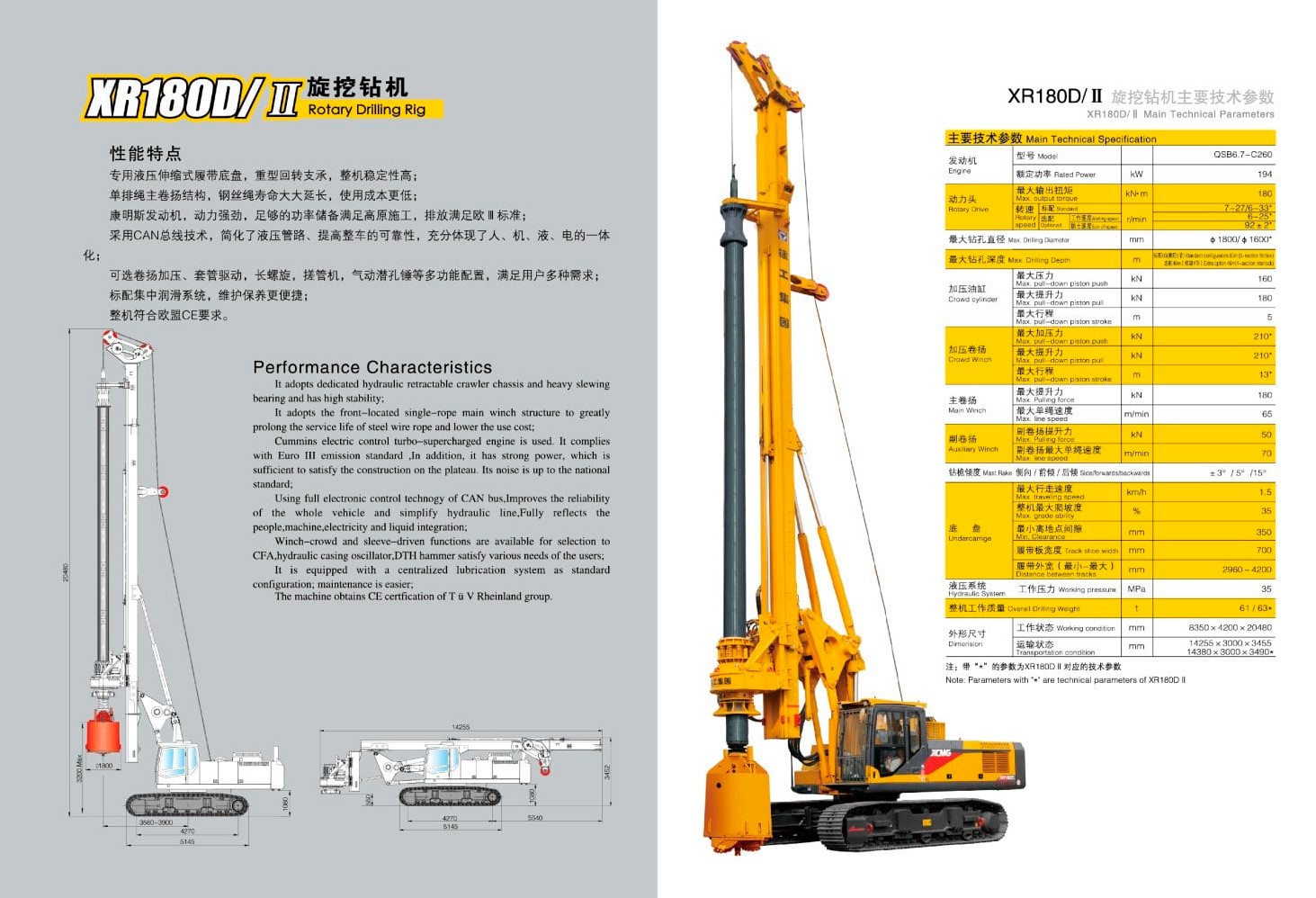

XCMG XR - 180D
The XCMG XR-180 is a rotary drilling rig designed for creating concrete foundation piles.
| Name |
Unit |
Parameter |
| Max Drilling Dia |
mm |
1800 |
| Max Drill Depth |
m |
60 |
| Max Output Torque |
KN.m |
180 |
| Rotary Speed Range |
R/min |
6 to 25 |
| Max Pulling Force |
KN.m |
180 |
| Max Line Speed |
m/min |
65 |
| Diameter of Wire |
mm |
28 |
| Rated Enging Power |
KW |
194 |
| Litre / Hour |
Diesel / Hour |
13 to 18 |
| Displacement |
Litre |
6.7 |
| Operation Weight |
Ton |
61 / 63 |
| Overall Height Working Condtion |
m |
8350 x 4200 x 2048 |
| Transport with Kelly Bar |
Y/N |
Yes |
| Transport Height |
mm |
3490 |
XCMG XR - 175I
The XCMG 175i piling rig machine is known for its efficiency and reliability in heavy-duty
construction projects.
| Name |
Unit |
Parameter |
| Max Drilling Dia |
mm |
1500 |
| Max Drill Depth |
m |
44 |
| Max Output Torque |
KN.m |
175 |
| Rotary Speed Range |
R/min |
5 to 38 |
| Max Pulling Force |
KN.m |
168 |
| Max Line Speed |
m/min |
80 |
| Diameter of Wire |
mm |
28 |
| Rated Enging Power |
KW |
169 |
| Litre / Hour |
Diesel / Hour |
15 to 18 |
| Displacement |
Litre |
6.7 |
| Operation Weight |
Ton |
58 |
| Overall Height Working Condtion |
m |
7.9 x 4.2 x 18.2 |
| Transport with Kelly Bar |
Y/N |
Yes |
| Transport Height |
mm |
3600 |
Zoomlion ZR - 185A
The Zoomlion ZR 185 piling rig machine is a versatile and powerful equipment designed for
various construction applications.
| Name |
Unit |
Parameter |
| Max Drilling Dia |
mm |
1500 |
| Max Drill Depth |
m |
56/44 |
| Max Output Torque |
KN.m |
185 |
| Rotary Speed Range |
R/min |
5 to 33 |
| Max Pulling Force |
KN.m |
160 |
| Max Line Speed |
m/min |
80 |
| Diameter of Wire |
mm |
26 |
| Rated Enging Power |
KW |
181 |
| Litre / Hour |
19 to 21 |
| Displacement |
Litre |
8.3 |
| Operation Weight |
Ton |
55 |
| Overall Height Working Condtion |
m |
20.2 x 8.7 x 3.58 |
| Transport with Kelly Bar |
Y/N |
Yes |
| Transport Height |
mm |
3588 |
